Pivot

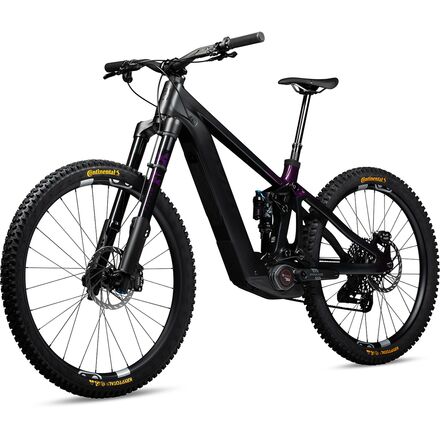

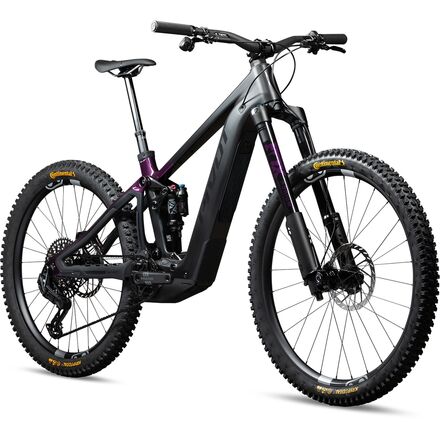

Shuttle LT V3 Pro X0 Transmission Neo eBike

$14,299.00

Quantity

Join Summit Club+ and

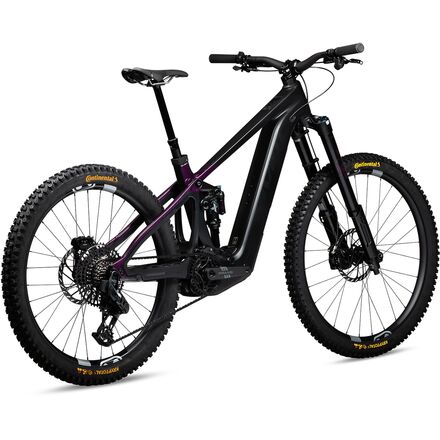

Race-level power and coil-sprung control define the Shuttle LT V3 Pro X0 Transmission Neo e-bike

What Our Gearhead® Experts Are Saying:

"This is the Shuttle LT build I point riders to when they want maximum downhill confidence without losing climbing efficiency. The Neo coil shock delivers incredible traction and composure in rough terrain, while the X0 Transmission drivetrain stays precise under load. It feels planted, powerful, and purpose-built for aggressive riding."

The Shuttle LT V3 Pro X0 Transmission Neo is built for riders who demand downhill performance without compromise. Designed by Pivot Cycles to handle steep, technical terrain at speed, this long-travel e-bike blends race-ready suspension with powerful, natural-feeling assistance. From extended climbs to sustained descents, it thrives when the trail gets demanding.

At the heart of this build is a FOX Neo coil rear shock paired with 170mm of front travel, delivering exceptional traction, consistency, and control through rough terrain. The Bosch Performance Line CX Race Edition drive unit provides responsive power when climbing steep pitches, while the lightweight carbon frame keeps handling precise and composed. Whether charging descents or stacking vertical, the Shuttle LT V3 Pro X0 Transmission Neo is built to go harder and farther.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

Designed for aggressive e-bike trail and enduro riding
FOX Neo coil rear shock for unmatched traction and consistency
170mm front travel for confident descending
Bosch Performance Line CX Race Edition motor delivers powerful assistance
X0 Eagle Transmission drivetrain built for durability under load
Mixed-wheel setup balances stability and agility
Carbon frame tuned for speed and control
Item #PIV1X5A

Frame Material: carbon
Suspension: dw-link

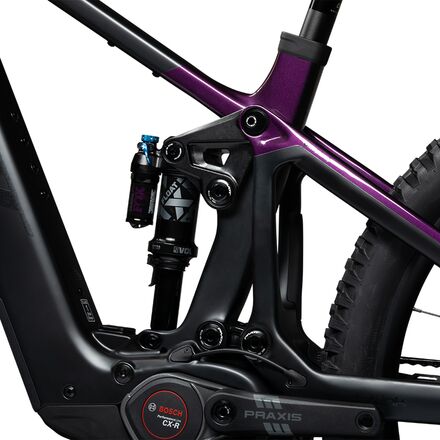

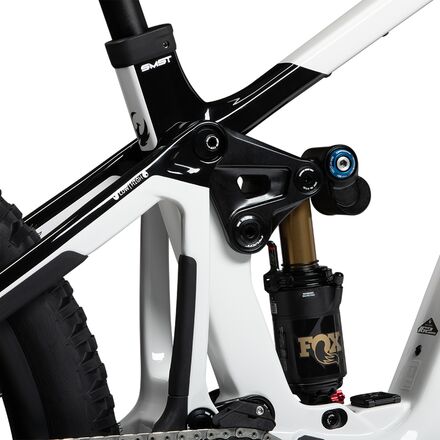

Rear Shock: FOX Neo Coil
Rear Travel: 165mm

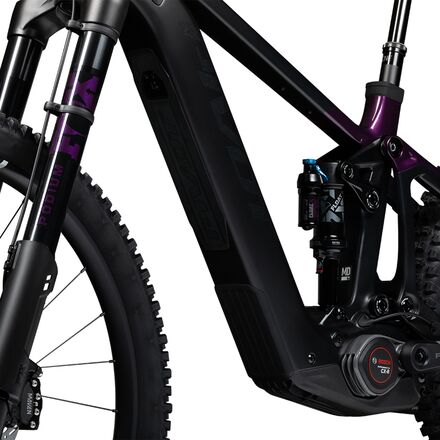

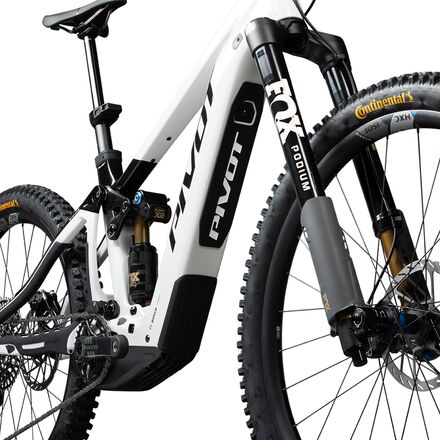

Fork: Fox Performance Elite Podium 29in, GRIP X2, 44mm offset
Front Travel: 170mm
Headset: Pivot Precision Sealed Cartridge
Shifters: SRAM AXS Pod Controller
Rear Derailleur: SRAM X0 Eagle Transmission (12-speed)

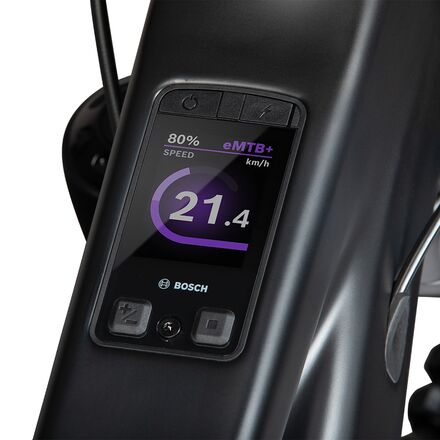

Computer: Bosch Kiox 400C
Drive System: Bosch Performance Line CX Race Edition
Battery Type: Bosch PowerTube 800Wh
Battery Energy: 800Wh
Max Speed: Class 1
ISCG Tabs: yes
Crankset: Praxis Alloy eCranks E-MTB
Chainring Sizes: 34t
Crank Arm Length: 160mm

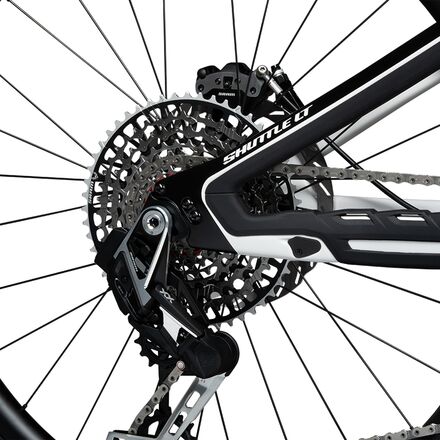

Cassette: SRAM GX 1275 Eagle Transmission
Cassette Range: 10–52t
Chain: SRAM X0 Eagle Flattop (12-speed)
Brakeset: SRAM Maven Silver 4-piston
Brake Type: hydraulic disc
Rotors: SRAM HS2 Centerlock (200mm)

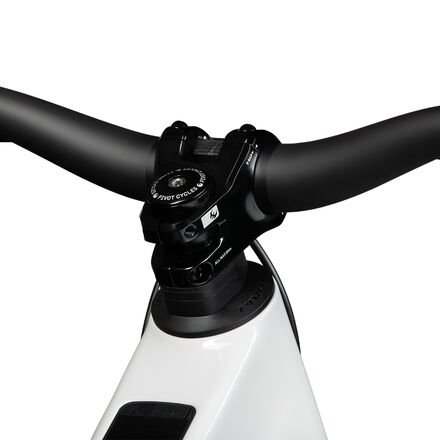

Handlebar: Phoenix Team Carbon
Handlebar Rise: [small] 20mm, [medium – x-large] 35mm
Handlebar Width: 780mm
Grips: Phoenix Factory Lock-On
Stem: Phoenix Team Enduro V2
Saddle: Pivot Ride E-Bike

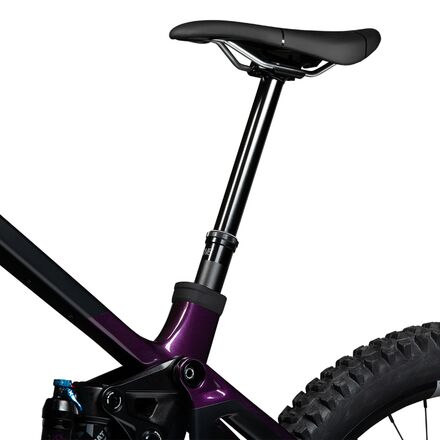

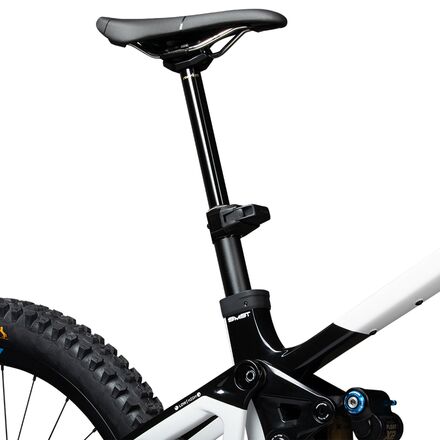

Seatpost: OneUp Dropper V3
Seatpost Length: [small – large] 40mm, [x-large] 50mm
Wheelset: Crank Brothers Synthesis DH
Hubs: Crank Brothers
Front Axle: 15 x 110mm
Rear Axle: 12 x 157mm
Tires: Continental Kryptotal Enduro casing
Tire Size: [front] 29in, [rear] 27.5in
Pedals: not included
Activity: enduro
Manufacturer Warranty: [frames, linkage bearings] lifetime (bike must be registered no later than 30 days after date of purchase), 3 years if not registered, [paint, coating, finish, decals] limited 1-year, [Phoenix-branded components] limited 5-year

This is Enduro, Electrified

The Shuttle LT is enduro – unleashed, electrified and honed to perfection. It channels chaos and control through a long-travel chassis shaped by enduro’s cutting edge of design. It descends with precision that’s more surgical than savage, cutting through terrain with quiet authority and razor-sharp focus. This is enduro electrified, designed for disorder, engineered for the unruly.

Wickedly Capable

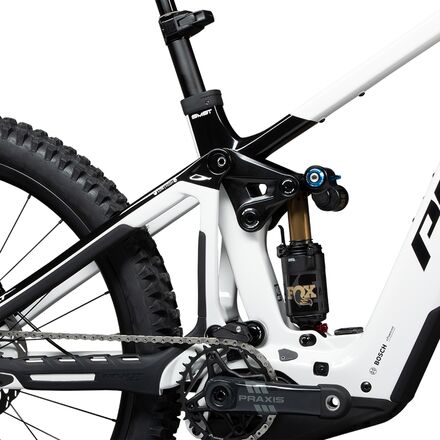

The Shuttle LT doesn’t just tame terrain, it thrives on it. A low-slung center of gravity locks you into the trail, keeping the bike planted when speed and chaos collide, while staying playful enough to go airborne at a moment’s notice. At its heart, 162 mm of dw-link rear travel paired with 170 mm up front creates a suspension platform that channels raw power into efficiency on the climbs and total control on the descents. Complementing that foundation, the Fox Podium inverted fork (Pro & Team Builds) rides with the authority of a downhill setup in a single-crown package, giving you the stiffness, precision and confidence to keep charging no matter how wild it gets.

Dial It In

Customization runs deep — with the new Shuttle LT, Pivot introduces the world’s first independently adjustable seat tube angle. Our patent-pending Slacky McSteepTube™ design lets you fine-tune your bike for the climbs and descents you live for, with a steep 78° for big alpine ascents or 76.5° for punchy up-and-down terrain like Moab. Pivot’s patented Swinger dropout system provides 8mm of chainstay adjustment for snappy handling or high-speed stability. A geo flip-chip lets you dail your geomety and wheel setup, while a suspension flip-chip adjusts the shock curve from lively and progressive to deep and composed. It’s personalization that goes beyond numbers, making the Shuttle LT an extension of you and your terrain.

Watt-Fed Fury

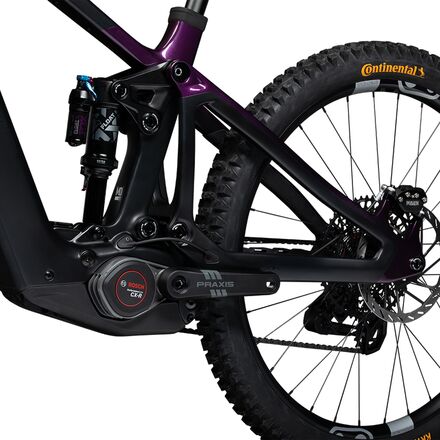

At the heart of the Shuttle LT Pro and Team builds is Bosch’s race-tuned CX-R drive unit, a lighter, more aggressive motor with a titanium spindle and ceramic bearings, built for pure speed and sharpened response. It pushes out 100Nm of torque and 750 watts of peak power, ready to fly up the most brutal climbs with eye-watering speed and exceptional traction. All backed by an easily removeable 800Wh battery, delivering the range to match the motor’s ferocity. From all-day epics to back-to-back race stages, a removable battery and range extender capability keeps the Shuttle LT going long after others have tapped out.

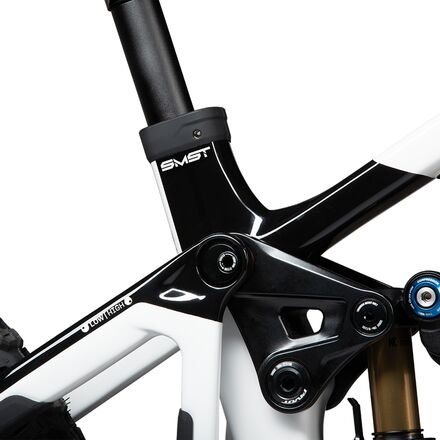

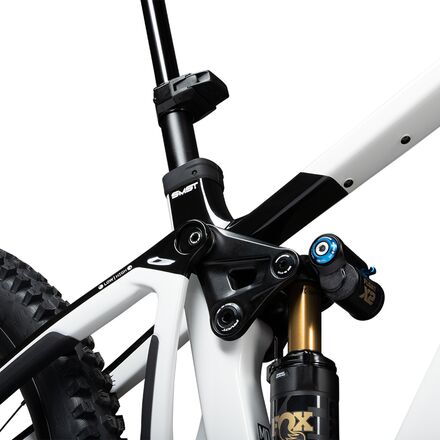

Slacky McSteepTube™

Pivot's patent-pending system allows independent adjustment of the seat tube angle, a world's first. Fine-tune between: 78° for dominating long, sustained climbs and 76.5° for mixed terrain and constant ups/down. Lets riders tailor the Shuttle LT’s climbing position to their terrain and style.

Removable Battery

The Shuttle LT’s 800Wh battery isn’t just big, it’s fully removable. Riders can swap between batteries in seconds, charge off the bike and travel with ease, all without compromising frame stiffness or handling. It’s the freedom to go further, faster, with less downtime. The Shuttle LT is also compatible with Bosch’s 600Wh battery for riders seeking a lighter package, for shorter rides.

Floating Battery Technology

Rather than fixing the battery rigidly to the frame, Pivot uses two independent nylon-composite mounts that allow it to subtly rotate as the carbon frame flexes under load. This floating interface lets the frame move naturally through impacts and cornering, preserving compliance, durability and the ride feel Pivot is known for.

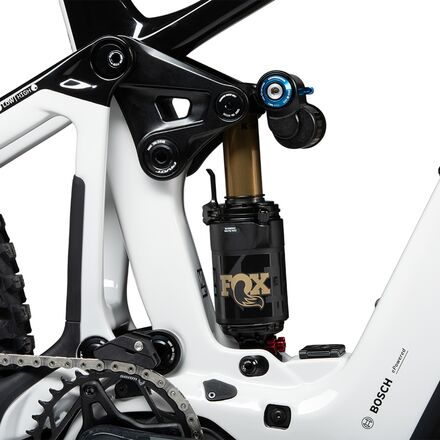

Suspension Progressivity Flip Chip

Adjustable progression via lower shock mount flip chip. Allows riders the ability to change the progressivity of the suspension curve. 0 - 100% of travel: 36.0% in progressive, 32.7% in linear. 30% (sag) to 90% of travel: 19.1% in progressive, 16.8% in linear

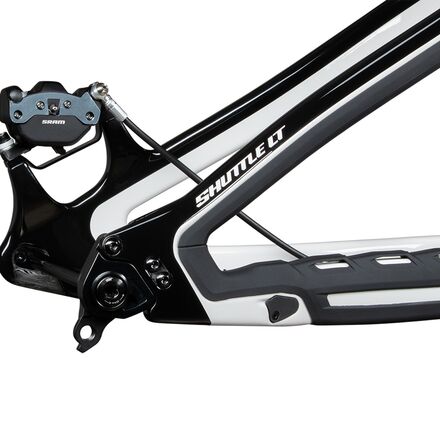

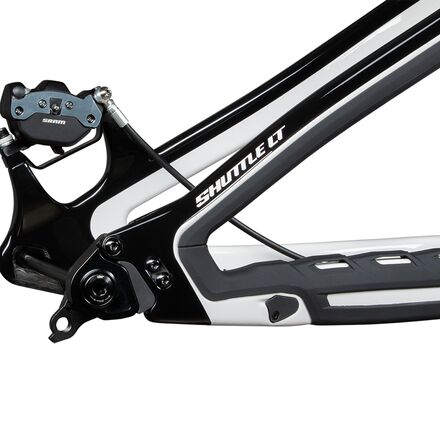

Adjustable Chainstay Length

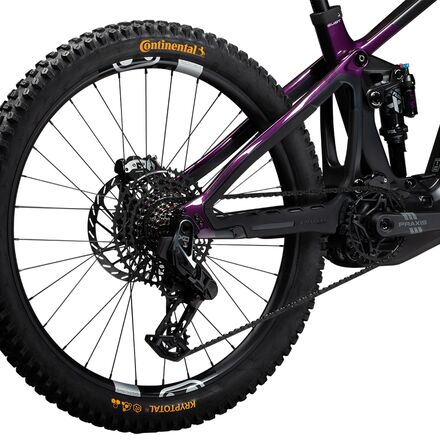

Using our Swinger Dropout patent, we developed a chainstay length adjustment that is fully compatible with UDH and SRAM Transmission in either setting. Riders can choose between the short or long position, providing 8mm of rear-center adjustment while also tuning rear travel, with 162mm in the short setting and 165mm in the long.

The Latest Bosch Performance Drive System

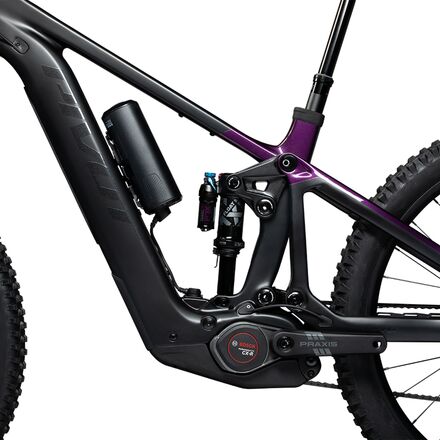

Powered by the latest Bosch Performance drive system, the Shuttle LT features Bosch Performance CX and CX-R motors (Pro & Team) for class-leading performance. An 800Wh battery delivers confident range, with the option to add the Bosch PowerMore 250 range extender. The compact, bottle-shaped PowerMore adds 250Wh, weighs just 3.3 lbs (1.6 kg), and mounts easily to extend your ride without compromise.

Pivot X Bosch Flow App

The Bosch x Pivot Cycles Flow app seamlessly connects riders to Bosch-powered e-bikes, offering access to all assist modes, including Turbo, eMTB-shortcrank, Sport, and the new eMTB+ mode. It also provides maintenance recommendations, a Pivot/Bosch dealer locator and real-time battery status with estimated range in one intuitive platform.

FOX Live Valve Neo

Live Valve Neo adapts to the trail in real time, delivering optimized suspension settings for every moment. On the Shuttle LT, Fox Live Valve Neo enhances control on descents and maximizes efficiency on climbs. Available exclusively on Team builds with the Fox Live Valve Neo air shock, it delivers a calm, planted feel that lets you ride faster, smoother and with total confidence through rough terrain.
*On select models

Shop the Pivot Shuttle LT V3 Family

Performance Redefined Since 2007

Pivot Cycles was founded in 2007 by industry veteran Chris Cocalis with a simple goal: build the best mountain bikes possible for riders who demand more from their ride. Drawing on decades of experience and a passion for engineering excellence, Pivot quickly became known for premium carbon frames, innovative suspension tuning, and bikes that excel across trail, enduro, downhill, and e-mountain categories. Based in Tempe, Arizona, Pivot combines precision design, rigorous testing on real terrain, and a rider-first philosophy to create machines that climb efficiently, descend with confidence, and elevate the entire riding experience. Rooted in community and a love of the sport, Pivot supports riders everywhere who know that the bike is just the beginning.
