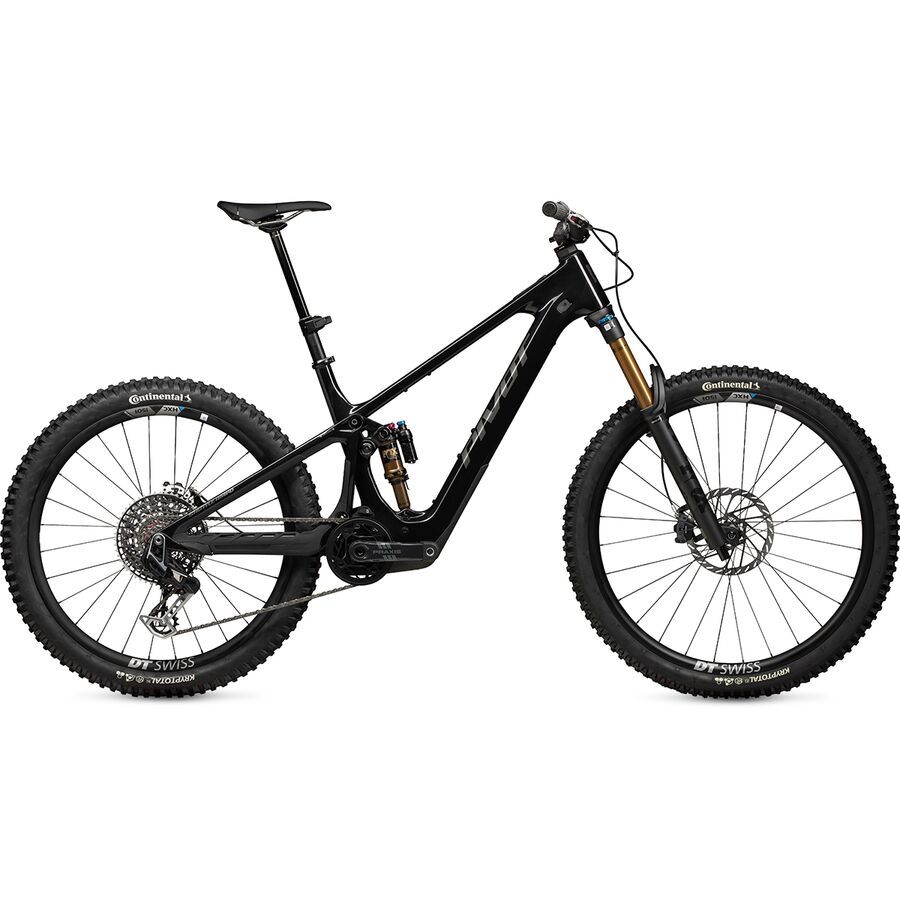

Pivot Shuttle AMP'd Team XX Transmission E-Bike

Pivot's Shuttle AMP'd Team XX brings full-power eMTB aggression to every trail

What Our Gearhead® Experts Are Saying:

"The Shuttle AMP'd had me grinning from the first climb. The Avinox M2S motor delivers instant, responsive power, and the dw-link suspension keeps things planted no matter how rowdy the trail gets. If you want an eMTB that charges hard without feeling like a freight train, this one's got your name on it."

Who It's For

Aggressive trail riders ready to push beyond the limits of a light trail eMTB

The Shuttle AMP'd is built for confident, experienced riders who want more authority and bite than a cross-country eMTB offers, without going full enduro. If you ride hard, hit tech features, and want power that responds immediately, this bike fits the mission.

What It's For

Big mountain trail riding where more travel and more power make the difference

This bike thrives on chunky, demanding terrain where 150mm of rear travel and a 160mm fork let you charge with control. Think rowdy singletrack, technical climbs, and descents where composure and grip matter.

Why We Like It

A gravity-inspired chassis with class-leading power and top-tier build quality

Pivot's dw-link suspension and Avinox M2S motor combine to produce a bike that climbs efficiently and descends with total confidence. The Fox Factory 38 fork and Float X rear shock, SRAM XX Eagle Transmission drivetrain, and DT Swiss carbon wheels make this a top-shelf setup built to perform.

Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearheads are always here to help.

Details

dw-link suspension platform optimizes power transfer and bump compliance for planted, efficient riding
Avinox M2S motor delivers 130Nm of torque and 1300W peak power for instant, controlled acceleration
Fox Factory 38 fork with GRIP X2 damper and 160mm travel absorbs big hits with precision
Fox Factory Float X rear shock with updated internals provides quieter, smoother 150mm rear travel
SRAM XX Eagle Transmission 12-speed drivetrain hardwired into Avinox system for seamless, battery-free shifting
Avinox 800Wh integrated battery with 508W fast charging support for extended range and quick turnarounds
Avinox DP100 OLED touchscreen serves as a full cycling computer and drive unit control interface
Item #PIV1X5U

Frame Material: carbon
Suspension: dw-link
Rear Shock: Fox Factory Float X
Rear Travel: 150mm
Fork: Fox Factory 38 GRIP X2
Front Travel: 160mm
Headset: Pivot Precision Sealed Cartridge ZS49/ZS56
Shifters: Sram AXS Pod Controller
Rear Derailleur: Sram XX Eagle Transmission (12-speed)
Computer: Avinox OLED Control Display
Drive System: Avinox M2S
Motor Power: 1300W
Battery Type: Integrated Avinox 800Wh
Battery Energy: 800Wh
Max Torque: 130Nm (Boost 150Nm)
Crankset: Praxis Carbon eCranks E-MTB
Chainring Sizes: 34t
Crank Arm Length: 155mm
Cassette: Sram XX 1297 Eagle Transmission
Cassette Range: 10-52t
Chain: Sram XX Eagle Flattop (12-speed)
Brakeset: Sram Maven Ultimate 4-piston
Brake Type: hydraulic disc
Rotors: Sram HS2 6 (200mm)
Handlebar: Phoenix Team Carbon
Handlebar Width: [x-small] 760mm, [small - x-large] 780mm
Grips: Phoenix Factory Lock-On
Stem: Phoenix Team Enduro V2
Stem Length: [x-small] 32mm, [small - large] 40mm, [x-large] 780mm
Saddle: Pivot Team E-Bike
Seatpost: RockShox Reverb V2
Wheelset: DT Swiss Hybrid HXC1501 Carbon
Hubs: DT Swiss Hybrid HXC1501 Carbon
Front Axle: 15 x 110mm
Rear Axle: 12 x 157mm
Tires: [front] Continental Kryptotal Super Soft Compound Enduro Casing, [rear] Continental Kryptotal Soft Compound Enduro Casing
Tire Size: [front] 29 x 2.4in, [rear] 27.5 x 2.6in
Pedals: not included
Claimed Weight: 47.5lbs (21.5kg)
Activity: trail
Manufacturer Warranty: limited lifetime

More Trail. Full Power.

Sharp handling and a settled ride, built on two decades of suspension design.

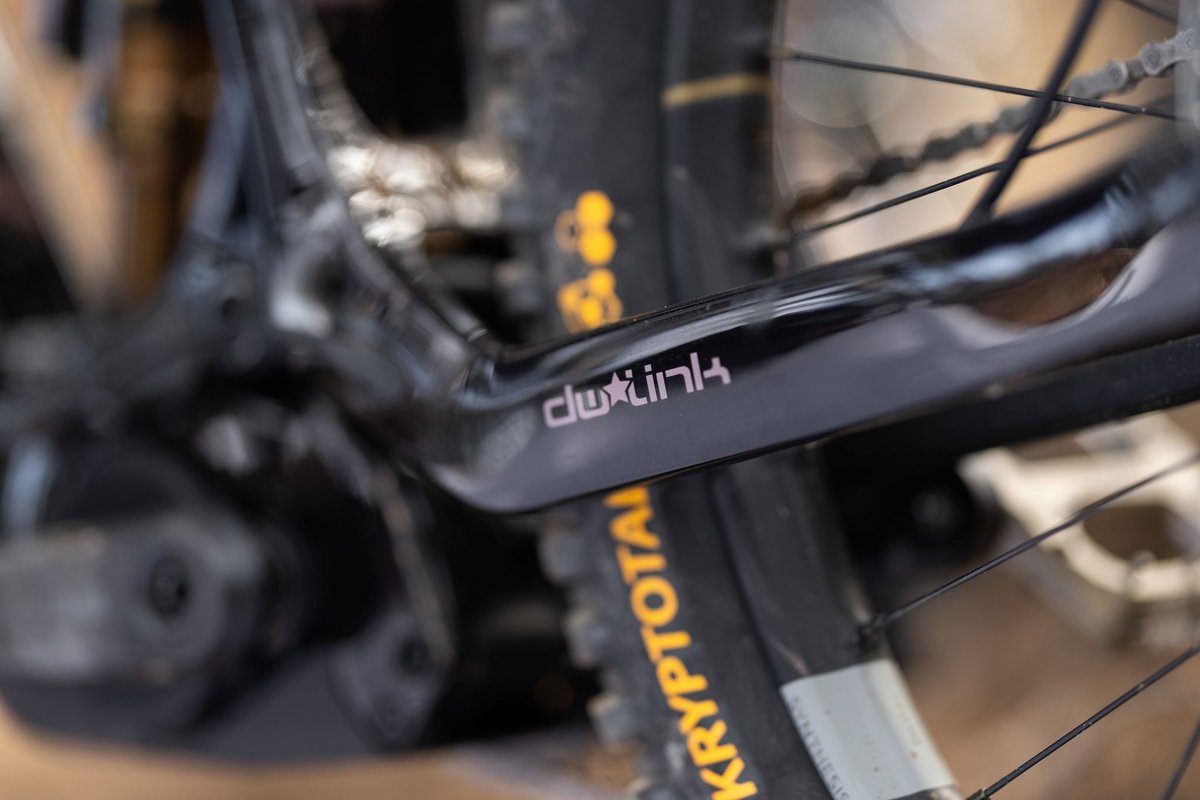

Close-up of mountain bike DW-Link rear suspension linkage with Kryptotal tire and drivetrain components

The dw-link Advantage

dw-link separates pedaling power from suspension movement, so the motor drives the bike forward instead of fighting the rear linkage. The rearward axle path absorbs square-edge hits without bleeding traction or momentum.

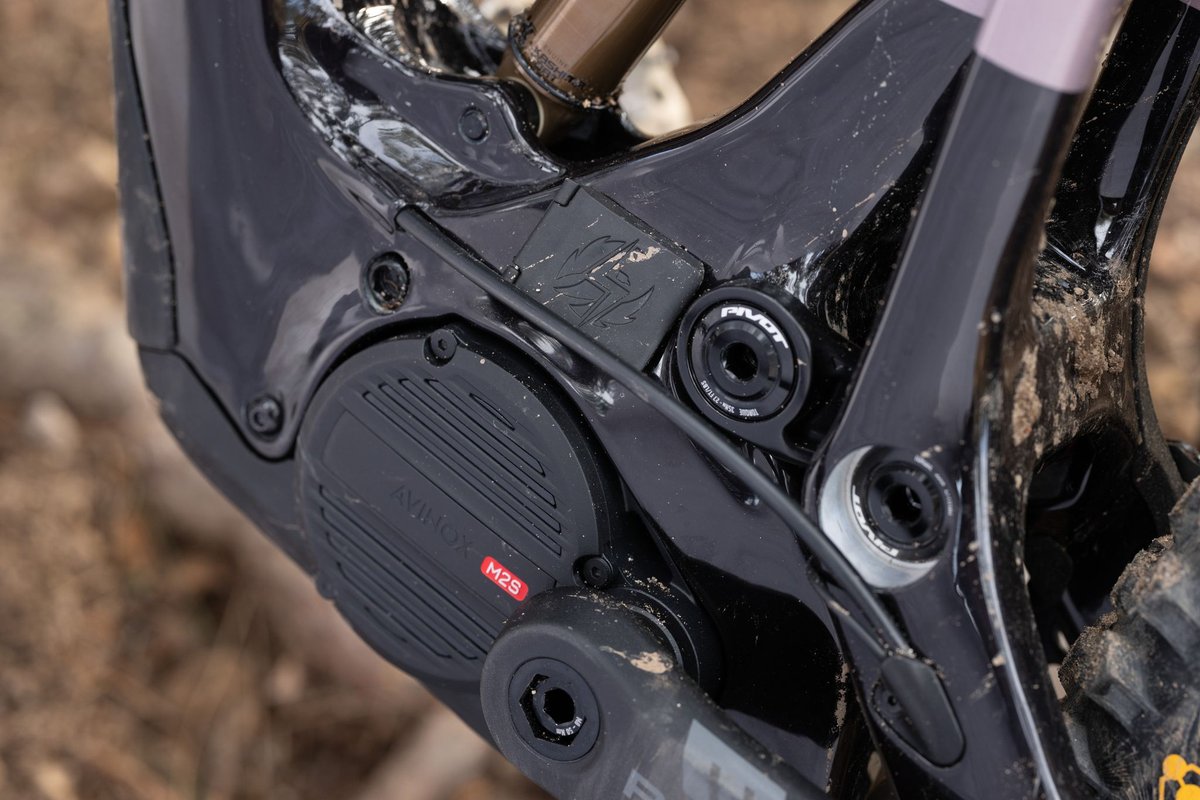

Full Power. Minimal Weight.

The Avinox M2S puts 130Nm of torque and 1300 watts through a 2.6kg motor. The Boost button unlocks 150Nm for 60 seconds when the climb demands it.

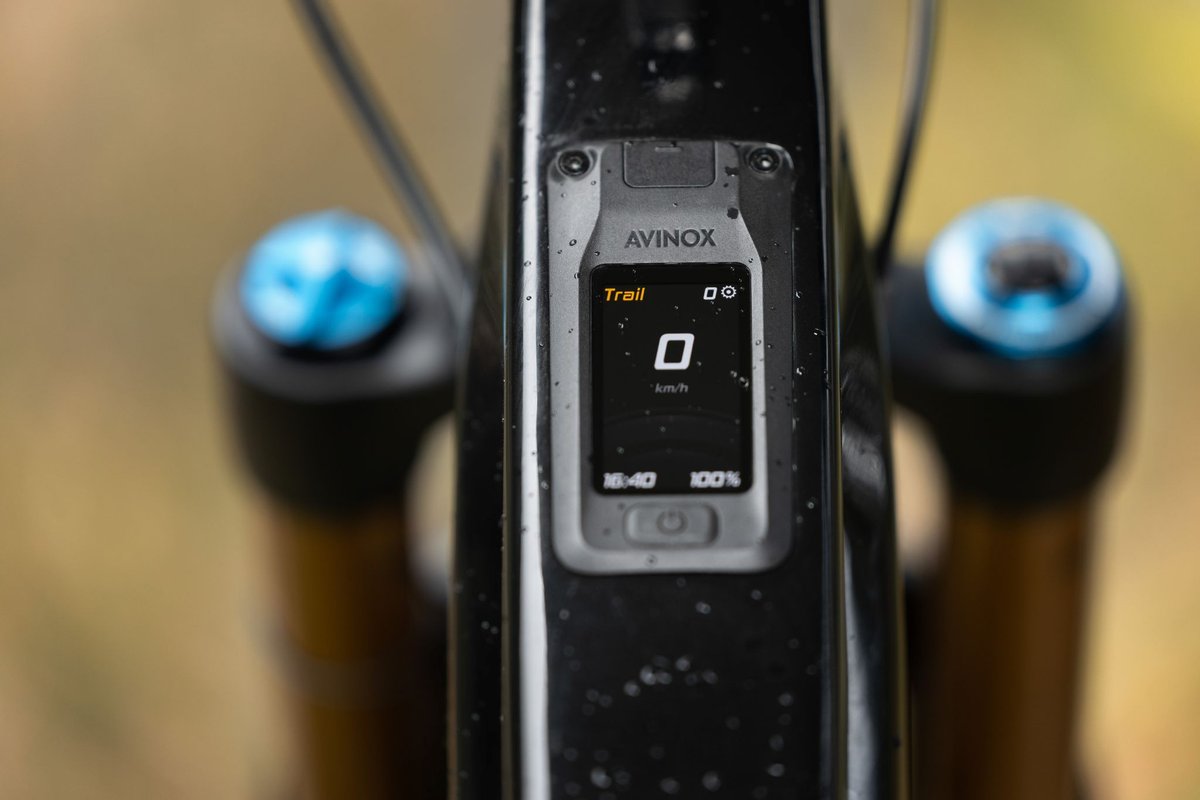

Close-up of electric mountain bike top tube display in Trail mode on rain-wet frame with blurred trail background

SmoothShift. One Less Thing to Manage.

Gear changes time automatically against pedal pressure and motor output. A partitioned reserve keeps the derailleur shifting even when the main battery runs out.

More Range. Faster Turnaround.

The 800Wh battery sits inside a narrow frame profile, keeping weight centered without adding bulk. The Avinox 508W fast charger, standard on Pro and Team builds, puts charge back fast.

Woman mountain biker smiling beside muddy full-suspension trail bike in forest, wearing crew sweatshirt, MTB helmet, and sport sunglasses

Mountain biker pulling front wheel up on electric full-suspension trail bike across grassy hillside in cool-weather riding conditions

Low-angle view looking up through two full-suspension eMTB frames at smiling riders surrounded by forest tree canopy

Mountain biker navigating steep dirt and root climb on electric trail bike through sun-dappled fall forest with golden foliage
