Pinarello
Be the first to review
Pinarello

Dogma X Disc Road Frameset

Be the first to review
$7,250.00
Color:Aqua Veil

Size:

Size Chart

Quantity


Join Summit Club+ and

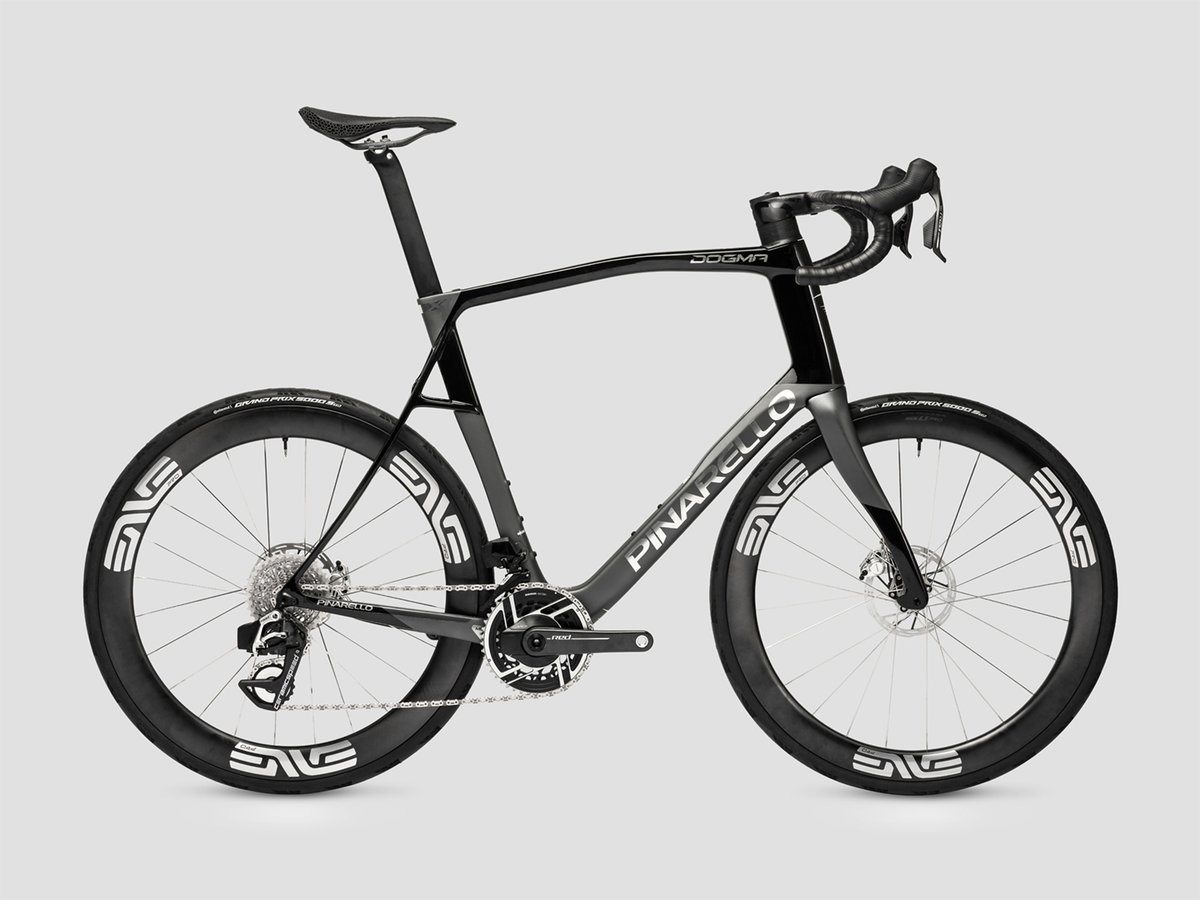

Build up Pinarello's most refined endurance frame

The new Dogma X frameset carries the same elliptical steering tube and new aero downtube found on the complete bike, giving your build sharper handling on descents and added stiffness through climbs and flats. X Stays 2.0 route road vibration through four connection points with a lower linkage that keeps rebound in check, smoothing out the long days this frame is built for. It ships with the new eTICR Onda fork, so the handling and stiffness gains carry through the entire front end from the start.


What Our Gearhead® Experts Are Saying:

"The first thing I noticed was how the front end tracked through fast direction changes without extra input, that's the steering tube doing its job. It's also the first Dogma X frame where the ride stays composed late into a long day instead of getting buzzy through the bars."


Building up the Dogma X and want help dialing in the right spec? Our Gearhead® Experts know this frame inside out. Reach out, and we'll help you put together a build that matches how you ride.


Details

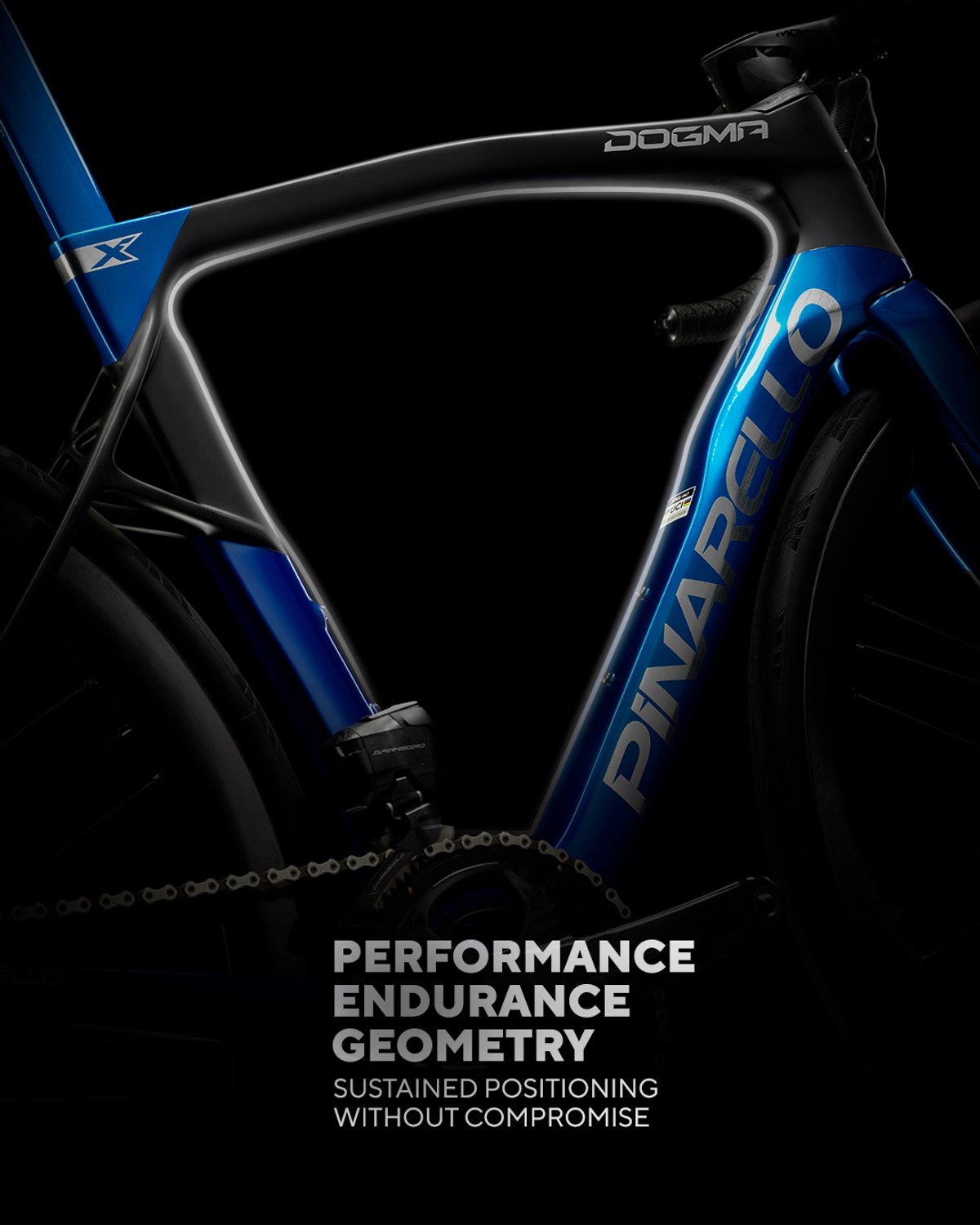

  • Upgraded endurance frameset for long days that reward comfort and control
  • M40X carbon fiber — built for strength without added weight
  • Elliptical steering tube — sharper handling on fast descents

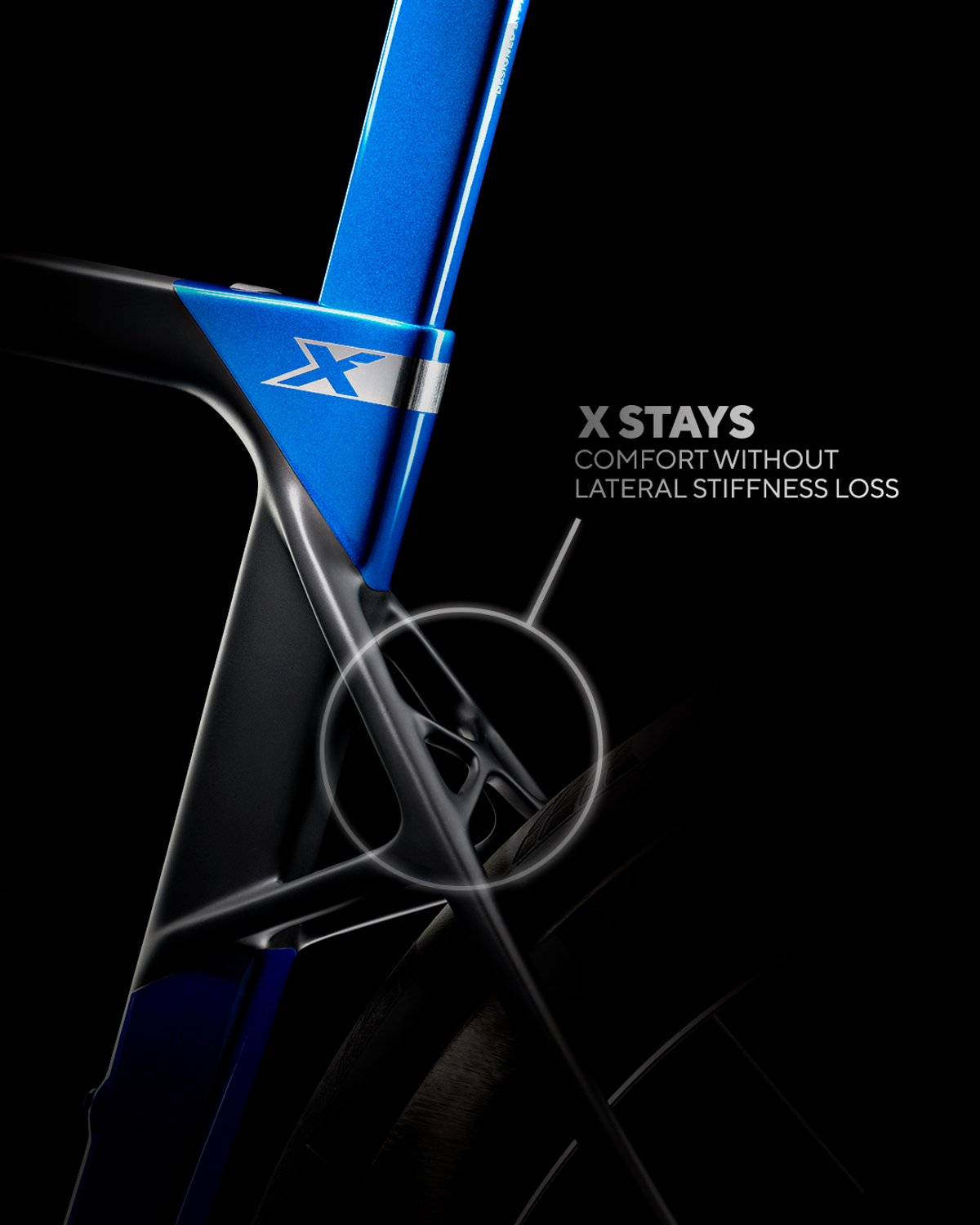

  • X Stays 2.0 — smooths vibration through four contact points
  • New aero downtube — added stiffness for climbs and flats
  • 12x100 front, 12x142 rear axle — removable integrated lever

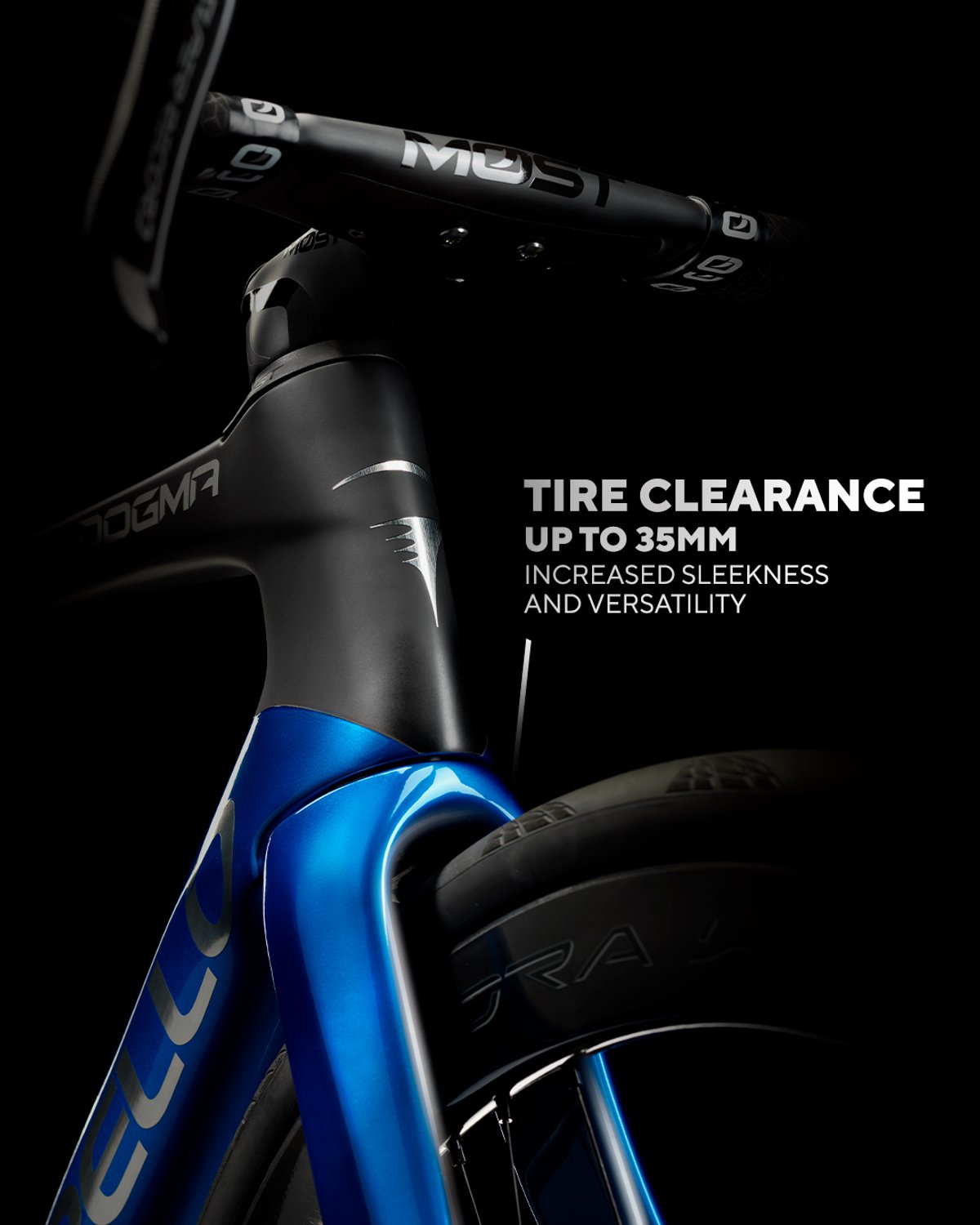

  • 35mm tire clearance — room for wider tubeless setups
  • Talon Ultra Fast cockpit — integrated bar and aero seatpost
  • Item #PINI08U
Frame Material
M40X carbon fiber
Fork
eTICR Onda Fork, ForkFlap, 1.5in steerer
Brake Type
hydraulic disc
Compatible Components
Max 54T chainring clearance, 1x compatible, 2x electronic groupset compatible
Handlebar
MOST Talon Ultra Fast
Handlebar Width
[430] 40cm, [465,500] 42cm, [515] 42cm, [530,540,550] 44cm, [560,575,595] 46cm, [620] 46cm
Bar Tape
MOST Superlight Black
Stem
Integrated, MOST Talon Ultra Fast
Stem Length
[430] 80mm, [465,500] 90mm, [515] 100mm, [530,540,550] 100mm, [560,575,595] 110mm, [620] 120mm
Seatpost
Pinarello Aero Seatpost, 3D Titanium Clamp, inline or offset
Seat Collar
FSC Frontal Seat Clamp
Front Axle
12 x 100mm
Rear Axle
12 x 142mm
Tire Clearance
35mm
Dropouts
UDH, dual-mount dropout system
Extras
Removable integrated thru-axle lever
Activity
Road cycling
