Specialized
Be the first to review
Specialized

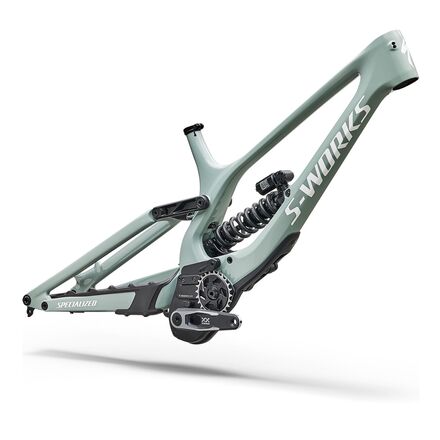

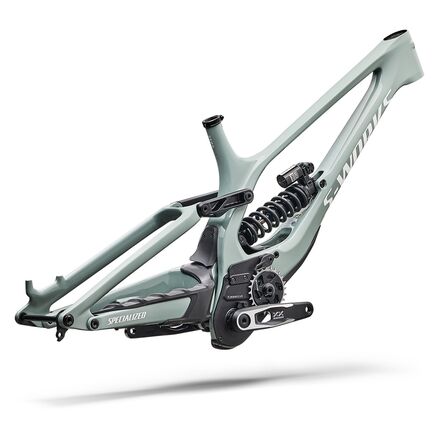

S-Works Demo 11 Frame

Be the first to review
$6,500.00
Color:Gloss Agave Grey

Size:

Add Ons


Join Summit Club+ and


HighGear frees the Demo 11's suspension from drivetrain drag

The S-Works Demo 11 frameset builds its downhill race platform around HighGear, a system developed with SRAM that physically separates drivetrain forces from suspension movement, so pedaling loads and chain tension stop fighting the suspension's ability to track the ground. Paired with the OBB linkage, HighGear raises ground clearance by 30 millimeters and lets the rear wheel stay fully active through the biggest hits instead of hanging up on impact.


What Our Gearhead® Experts Are Saying:

"I hit a rock garden at speed expecting the back end to hang up the way it always has on stiffer downhill frames, and it didn't. The wheel kept tracking through hit after hit instead of packing up, so I carried speed through the exit instead of scrubbing it off to recover."


Building up the S-Works Demo 11 and want help dialing in the right spec? Our Gearhead® Experts know this frame inside out. Reach out, and we'll help you put together a build that matches how you ride.


Details

  • Downhill race frameset built to hold speed through repeated big hits
  • HighGear drivetrain isolation — keeps suspension active without pedal feedback
  • 62.5 degree head tube angle — stable, confident at max speed
  • FACT 11m carbon frame — engineered to survive elite-level downhill impact
  • 148mm rear spacing — sets up a wide, stable rear wheel base
  • Reach-adjust headset, BB height adjustment — dial in fit without changing frames
  • Mullet wheel setup — 29in front, 27.5in rear for speed and control
  • RockShox Vivid Coil Ultimate shock, SRAM XX HighGear crank — included with the frame
  • Item #SCQ1X3L
Frame Material
FACT 11m Carbon
Suspension
OBB (Over Bottom Bracket) linkage
Wheel Size
MX
Rear Shock
RockShox Vivid Coil Ultimate DH
Rear Travel
200mm (7.9in)
Fork
Not included
Fork Travel
200mm (recommended)
Headset Included
Yes, reach-adjust cups
ISCG Tabs
No
Cable Routing
Internal
Rear Axle
148mm
Extras
HighGear drivetrain isolation system
Includes
RockShox Vivid Coil Ultimate DH shock, SRAM XX HighGear Crankset (165mm)
Activity
Downhill
