ASTR Rival AXS XPLR 1x Carbon Wheel Exclusive Gravel Bike
Size:
Quantity
Join Summit Club+ and

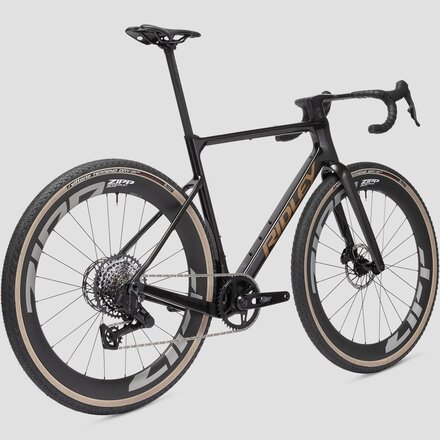

Ridley ASTR Rival AXS XPLR gravel bike with Zipp 303 XPLR carbon wheels and 13-speed wireless drivetrain
What Our Gearhead® Experts Are Saying:
"The ASTR puts me in a position I associate with racing: low, aerodynamic, and pointed forward. On fast gravel roads that's exactly where I want to be."
Why We Like It
We built this around the SRAM Rival XPLR groupset to match the kind of riding the ASTR's geometry demands. The 13-speed 10-46T cassette is tuned for the speed range of competitive gravel rather than the wide-range climbing demands of technical terrain, and the wireless Rival levers integrate the braking and shifting into one clean, ergonomic system.
Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.
Details
- Gravel race bike for competitive riding and fast mixed-surface routes
- HM carbon frame — 71.5° head angle, low BB, and short chainstays tuned for race-pace stability
- Integrated diffuser fork crown — reduces drag where airflow meets the downtube
- SRAM Rival E1 XPLR AXS 13-speed wireless drivetrain — 10-46T cassette optimized for competitive gravel
- Zipp 303 XPLR S carbon wheels — 54mm depth, 32mm internal width, hookless tubeless

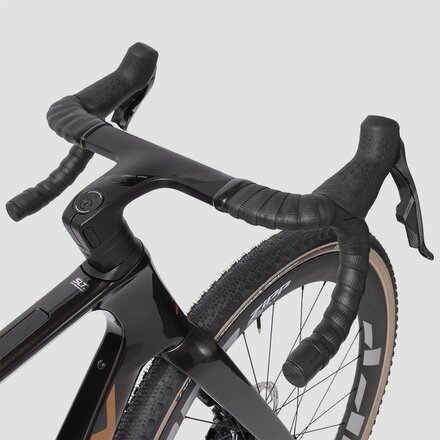

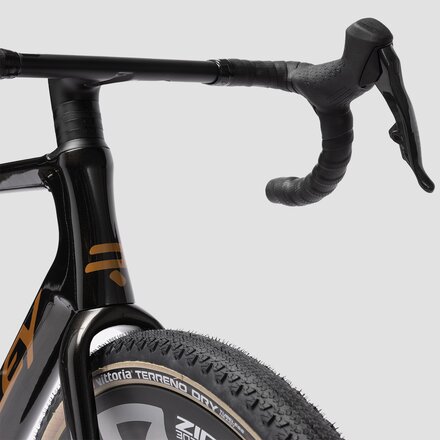

- Forza Cirrus Pro integrated flared gravel cockpit — carbon, size-specific stem and bar widths
- 52mm tire clearance — Vittoria Terreno Dry G2.0 TLR 700 x 47c included
- Item #RIDC08U
- Frame Material
- HM Carbon
- Fork
- ASTR carbon, integrated diffuser fork crown, 50mm rake, D-shape steerer
- Shifters
- SRAM Rival E1 AXS

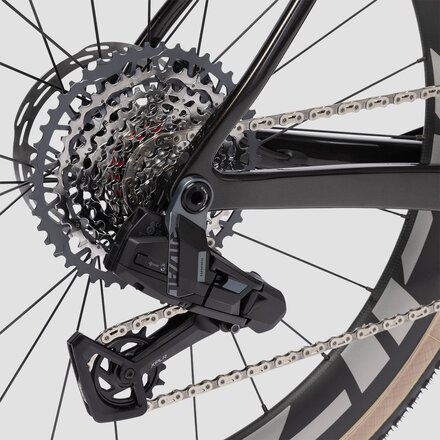

- Rear Derailleur
- SRAM Rival E1 XPLR AXS, 13-speed

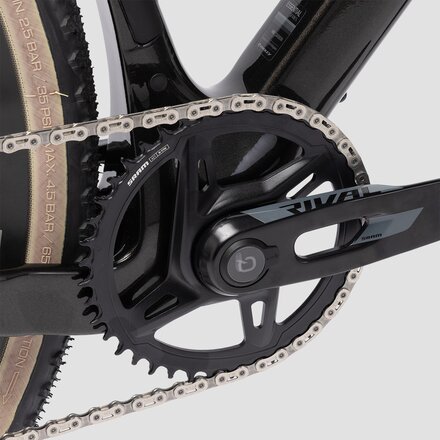

- Crankset
- SRAM Rival E1 XPLR DUB Wide
- Chainring Sizes
- 42t
- Crank Arm Length
- [x-small, small] 160mm, [medium] 165mm, [large] 170mm, [x-large] 172.5mm
- Bottom Bracket
- SRAM DUB pressfit, BB86, 86.5mm
- Cassette
- SRAM XG-1351 XPLR E1, 13-speed
- Cassette Range
- 10-46t
- Chain
- SRAM Rival E1 Flattop Chain, 126 Link

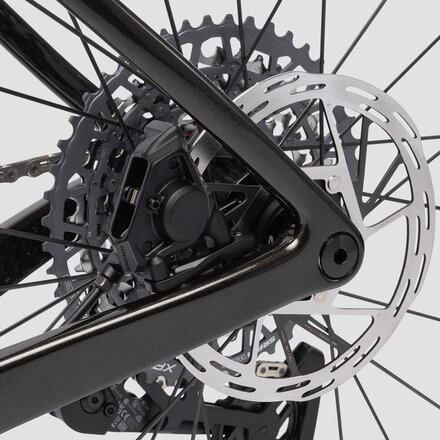

- Brakeset
- SRAM Rival E1 AXS
- Brake Type
- hydraulic disc, flat-mount

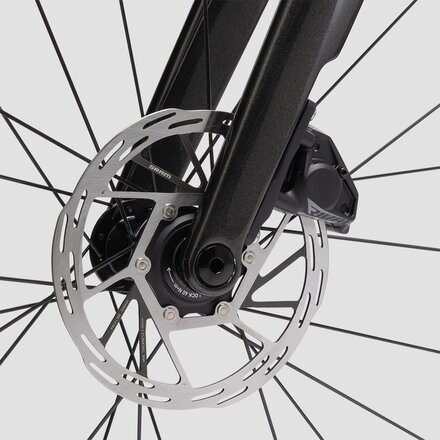

- Rotors
- SRAM Paceline Rounded Rotor, centerlock, 160mm
- Handlebar
- Forza Cirrus Pro Integrated Flared Gravel Cockpit (carbon)
- Handlebar Drop
- 120mm
- Handlebar Width
- [x-small, small, medium] 38cm, [large, x-large] 40cm
- Bar Tape
- Selle Italia SMART Tape, 2.5mm
- Stem
- Forza Cirrus Pro integrated
- Stem Length
- [x-small, small, medium] 90mm, [large] 100mm, [x-large] 110mm

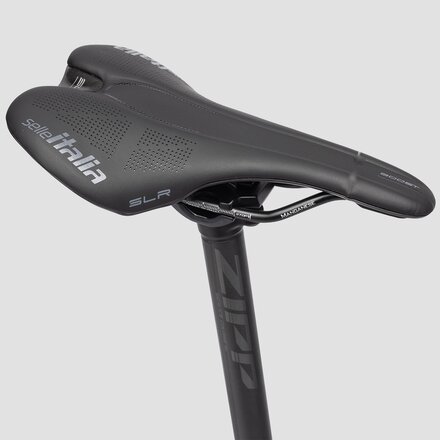

- Saddle
- Selle Italia SLR Boost CC, 145mm
- Seatpost
- Zipp Service Course SL C2, 27.2mm, 0mm setback, 400mm
- Wheelset
- Zipp 303 XPLR S Carbon, 54mm, hookless tubeless, centerlock
- Hubs
- Zipp 76/176 DB
- Front Axle
- 12 x 100mm thru-axle
- Rear Axle
- 12 x 142mm thru-axle
- Tire Clearance
- 52mm
- Tires
- Vittoria Terreno Dry G2.0 TLR, Graphene 2.0
- Tire Size
- 700 x 47mm
- Pedals
- not included
- Includes
- SRAM eTap Battery Charger, spare AXS eTap Battery
- Activity
- gravel
- Manufacturer Warranty
- [frame] lifetime after registration
