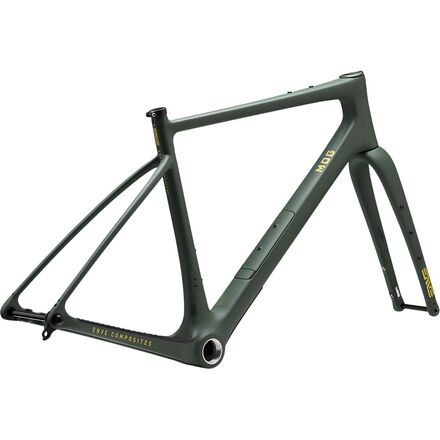

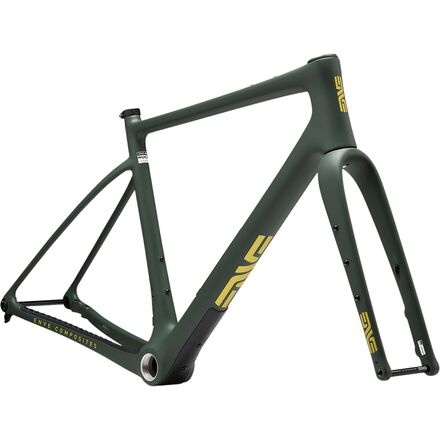

Built for gravel speed and storage, Mog Frameset blends race geometry with adventure-ready integration
What Our Gearhead® Experts Are Saying:
"I built up the Mog Frameset for a mixed calendar of gravel races and long backroad days, and it absolutely rips. The road-inspired geometry keeps it quick on accelerations, but it stays composed when the terrain gets chunky. I love the fully integrated front end. It is clean, quiet, and aero. The in-frame storage is the real bonus for big days out. It is a dream platform if you want race speed with real-world versatility."
When we line up for a gravel race or roll out before sunrise for an all-day adventure, the ENVE Mog Frameset is the foundation we trust. ENVE built the Mog around its M.O.D. carbon construction and a road-inspired geometry that feels fast the second we clip in, yet remains stable and confident when the pavement fades into washboard and loose corners. It is a race-ready chassis that still leaves room for exploration.
The fully integrated IN-Route front end routes cables and hoses through the bar, stem, and headset for a sleek, aerodynamic profile and a silent ride free from rattle. With clearance for up to 700 x 50c tires and optimized handling across all six frame sizes, the Mog balances speed and capability. The T47 inboard bottom bracket ensures durability and easy service, while compatibility with modern 1x and 2x gravel drivetrains gives us flexibility to build it our way. Two included Cargo Bay storage bags and multiple mounting points let us carry tools, layers, and fuel without sacrificing performance.
Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearheads are always here to help.
Details
- Race-ready gravel frameset for competition, fast group rides, and endurance events
- Adventure-capable platform for bikepacking and off-grid exploration
- M.O.D. carbon frame and fork for lightweight stiffness and tuned compliance
- IN-Route fully integrated internal cable and hose routing for aero efficiency
- Clearance for 700c tires up to 50mm for modern gravel versatility
- T47 inboard bottom bracket for durability and easy serviceability
- Compatible with Shimano GRX and SRAM WIDE 1x and 2x drivetrains
- Includes two in-frame Cargo Bay storage bags and universal derailleur hanger
- Item #ENV2SQN
- Frame Material
- M.O.D. Carbon
- Wheel Size
- 700c
- Fork
- ENVE M.O.D Carbon
- Head Tube Diameter
- 1 1/8in
- Headset Included
- ENVE Integrated IS52/IS52 Internal Drop-In
- Bottom Bracket Type
- T47 inboard bearing
- Cable Routing
- internal
- Front Derailleur Mount
- braze-on
- Brake Type
- flat-mount, disc
- Compatible Components
- 2X Shimano GRX double cranks (47mm chainline). All currently available Shimano GRX double chainring combinations are compatible. Using a Shimano GRX front derailleur limits the tire size to a max of 47mm according to Shimano's spec. 2X SRAM WIDE double cranks (47.5mm chainline). All currently available SRAM WIDE double chainring combinations are compatible. Using a SRAM WIDE front derailleur limits the tire size to a max of 45mm according to SRAM's spec. *Standard road double cranks WILL NOT fit. 1X Max 44T for 44.5-45.5 chainline (SRAM 1x Cranks w/ typical aftermarket direct mount chainrings. 1X Max 50T for 47+ Chainline (Shimano GRX, SRAM 1X WIDE). 1x Ekar has a 45.5-46.5 chainline and cranks that are offered with 38-44T options will fit MOG. *Older SRAM Force 1 (or similar) 5-bolt cranks will NOT clear with the stock bolt spacers on the backside of the chaining spider. These cranks are compatible if the stock ring and spider is swapped for a direct-mount ring.
- Handlebar
- ENVE Gravel, ENVE SES AR, ENVE SES AR One-Piece, or ENVE Compact (not included)
- Stem
- In-Route Aero or In-Route High Rise Stem (not included)
- Seatpost
- ENVE G series dropper or ENVE Seatpost (not included)
- Seatpost Diameter
- 27.2mm
- Seat Collar
- 12 x 100mm Thru-axle
- Front Axle
- 12 x 142mm Thru-axle
- Rear Axle
- 700 x 35 - 44mm
- Tire Clearance
- 700 x 50c
- Extras
- downtube protector, 2 Cargo Bay storage bags
- Includes
- Universal Derailleur Hanger
- Claimed Weight
- [size 56] 950g
- Activity
- gravel
- Manufacturer Warranty
- 5 years
- SHIS
- IS52/IS52
Enve MOG Gravel Race Platform
Engineered carbon gravel bike with IN-Route integration, tuned geometry, and adventure-ready storage.

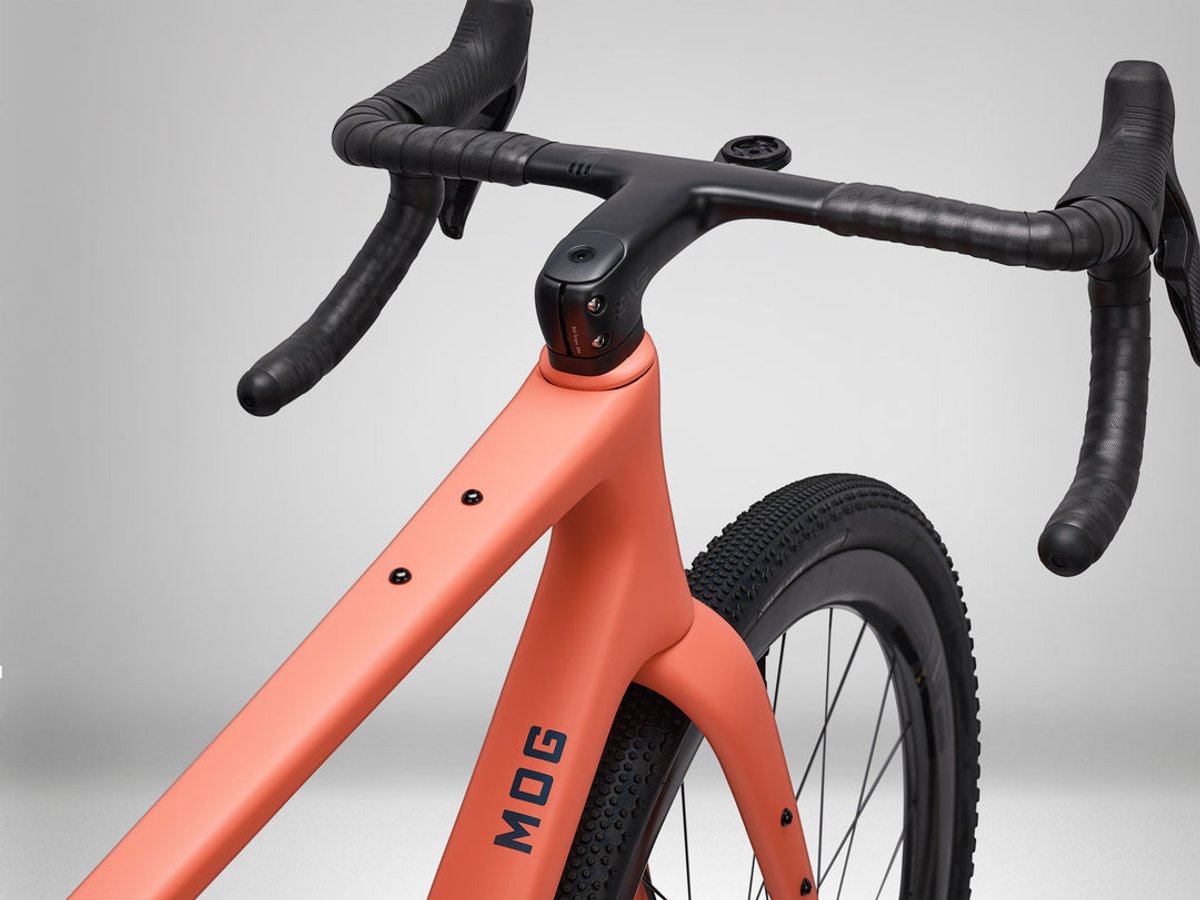

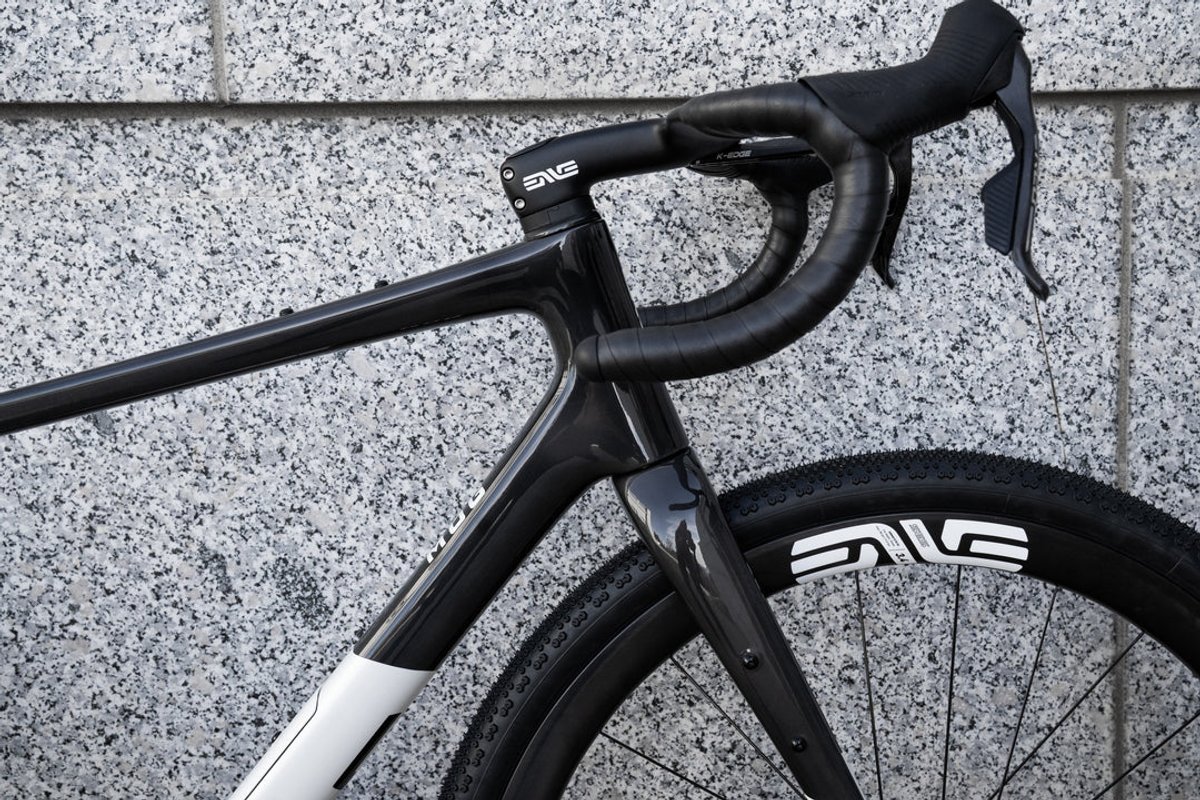

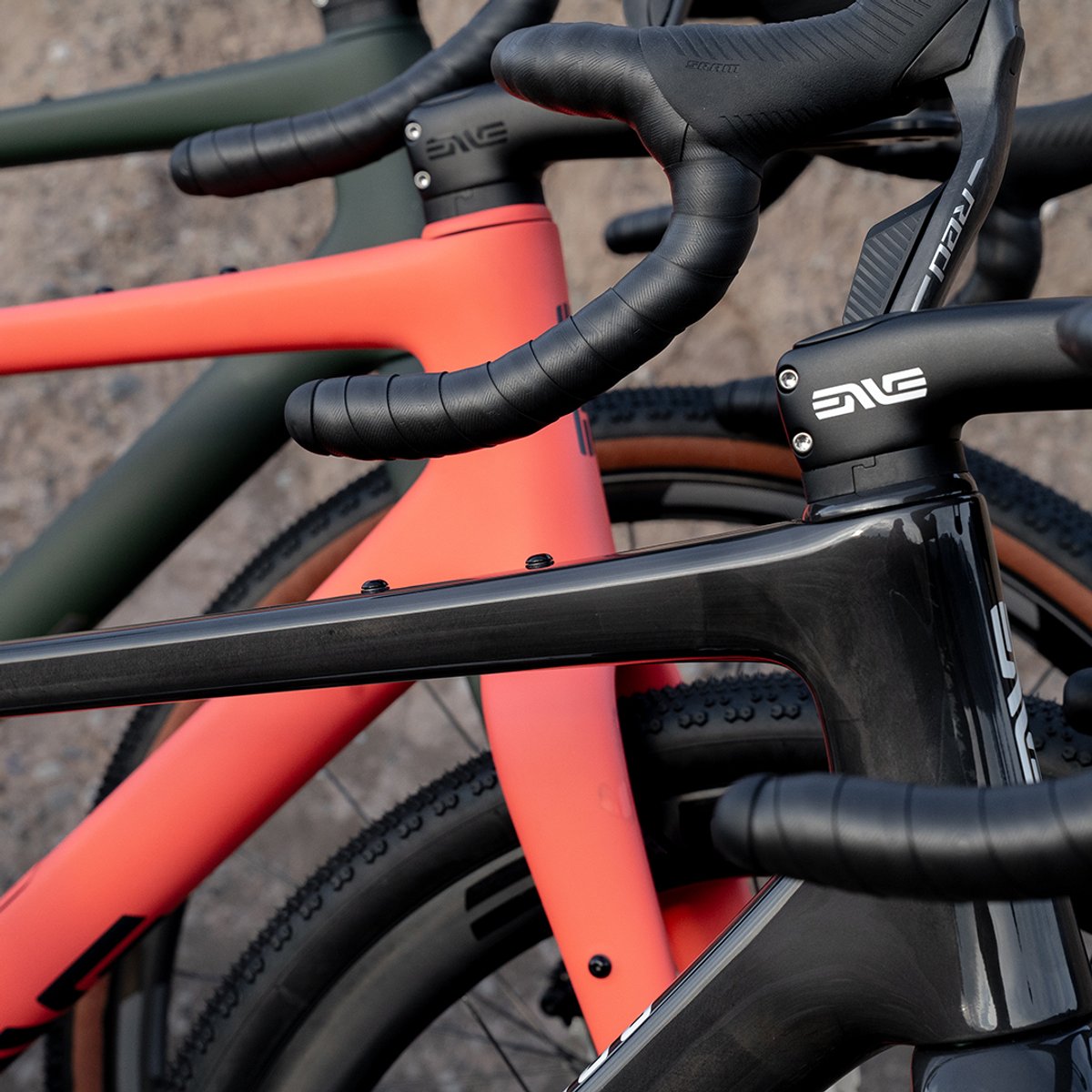

Integrated. Silent. Aero.
Cables and hoses route through the bar, stem, and headset. The anti-rattle system keeps them secure and silent. Reduced drag and cleaner aesthetics improve race efficiency.
Consistent Handling Across Sizes
Three fork rakes and six frame sizes optimize trail and stability. Each size maintains responsive, confidence-inspiring handling. Fit does not compromise performance.
Engineered Without Compromise
ENVE designs and manufactures high-performance carbon fiber bicycles and components. Every product is engineered for measurable gains in efficiency, durability, and ride quality.
